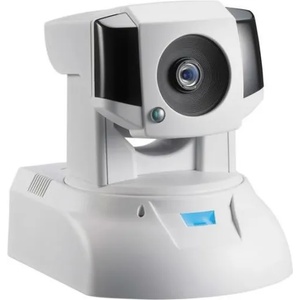

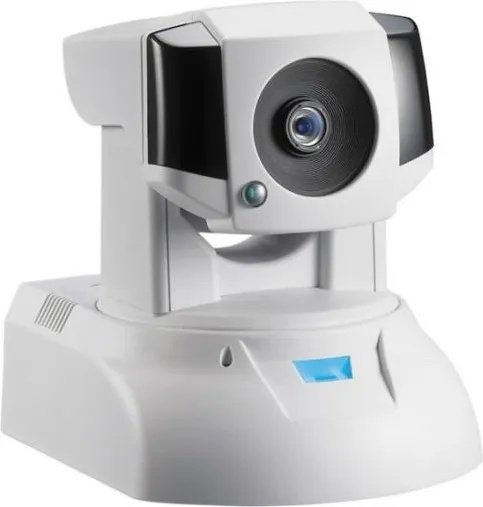

Compro IP570P



Тази Compro камера е съвместима с облачната услуга SEEDONK - можете да управлявате, споделяте и наблюдавате вашите камери от всяка точка на света през вашия Android/iOS смартфон с ненадмината лекота!
Посетете seedonk. com за повече информация.

PTZ камера за видеонаблюдение, 12x оптично увеличение, 1.3 Mpix резолюция, подходяща за дневно и нощно наблюдение, PoE захранване

• 1/4" progressive scan CMOS vivid image матрица
• 1.3 Megapixels 1280x1024 HD sharp резолюция
• H. 264, MPEG-4, M-JPEG компресия, поддържа dual streaming
• Пълна поддръжка на звук, вграден микрофон, аудио вход и изход; two-way audio communication поддръжка
• True Day & Night illumination с ICR-контролирани IR LEDs, дистанция до 15 м
• Поддържа до 30 preset траектории за наблюдение
• ComproView 32-канална охранителна система
• Digital I/O 3-in/3-out, позволява свързване с външни сензори и аларми
• Анализ на събития, детекция на движение и звук
• IEEE 802.11b/g/n WiFi съвместима (опция)
• microSD/SDHC порт за локален запис; до 32GB (не включва карта)
• 3GPP или M-JPEG мобилен достъпподдържа Andriod, BlackBerry, iPhone, Windows Mobile
• WebVUer отдалечено наблюдение, multi-channel разположение на екрана, поддържа до 16 канала
• 12x оптично увеличение, автом. фокус и ирис контрол



VIDEOSensor 1/4" progressive scan CMOSVideo StandardTri-codec M-JPEG, MPEG-4, H. 264; dual streams supportedData RateStreaming 1 and 2 multi-level configurabilityVideo Quality6 selectable LevelsSystem60 / 50 HzResolution & Frame Rate1280 x 1024 15/15 fps640 x 480 30/25 fps320 x 240 30/25 fps160 x 120 30/25 fpsDay & NightIllumination12x IR LED, mechanical-ICR controlled, 850 nm, effective 15 m, multi-level configurabilityColor1.0 Lux minimumNight Mode0 Lux when IR onChannel1Ch or 4Ch division, 16 x multi-IP channels per WebVUer;sequence supportedImaging  Color ContourBrightness, saturation, sharpness, multi-levelconfigurableWhite Balance5 scenarios selectableElectronic ShutterAuto, manual (1/5~1/16000 sec, 16 levels selectable)Flickerless6 0, 50 Hz selectableLow-Light ModeSpecially enhanced OrientationFlipPAN / TILT /ZOOMPanning-1 70 ~ +170˚, max 45 º/secTilting-10 ~ +90, max 35 º/secZooming12x optical, 120x over ComproView; fitting browser, 100%Controlling30 preset points, configurable patrol tourAUDIO Comp ression FormatG. 711 PCM 64Kbit/sec, two-way audio supportedMicrophone1 x built-in, S/N ratio more than 58 dB, sensitivity50~10,000 HzAudio Line Input / Output1 x in, 1 x out, 3.5 mm phone jackSYSTEMINTEGRATION Sensor In / Alarm Out3 x in, 3 x relay out (external & optional)Triggering EventVideo motion detection (multiple zones and sensitivitylevels), audio detection (multi-sensitivity), schedule, I/OTriggering ReactionSnapshot, e-mail, FTP, alarm out, ComproViewnotificationSDK AvailableNETWORK Protocols3GPP, ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP/IPv4, IGP, NTP, PPPoE, RSP, RTSP, SMTP, TCP/IP, UDP, UPnPEthernet10/100 Base-T, auto sensing, RJ-45, front LED indicatorWirelessIEEE 802.11 b/g/n compliant (external & optional)User Group3 levels, unlimited users, max 10 users simultaneouslyEncryptionWEP, WPA-PSK, WPA2-PSK (when Wireless becomes available)DiagnosticsAu to connectivity detection, iWizard, iDoctorLOCAL STORAGEStorage microSD/SDHC slot, up to 32GB (card not incl)FormatJPEG, file name format configurableControlPlay back by event typesREMOTE SURVEILLANCEMobile SurveillanceM-JPEG or 3GPP streaming over major platformssuch asAndroid, BlackBerry, iPhone, Windows MobileWeb SurveillanceWebVUer 16Ch over Internet Explorer, Chrome, Firefox, Safari; features variedAdvanced SurveillanceComproView 32Ch surveillance system freely bundledGENERALU nit ConfigurationReboot, factory default, date/time synchronizationUser AuthenticationID, PasswordFirmwareHTTP mode, remote updateOSDText or image on-screen overlayLanguageMulti-li ngual supportSystemLogListing , cleaningRegulatoryCE, FCCMECHANICALLe ns Type & Mountingf 3.8 ~ 45.6 mm, F1.65, auto focus, auto iris, FOV 52.8º (H) 4.49º(V), focus range 1.0 m ~ infCasingPTZ, indoor, silver metallicDimension (HxWxD)125.5 x 105.0 x 128.5 mmWeight560 g (incl bracket)ELECTRICAL Input VoltageDC 12VPower Consumption2 A; 10.0 W, with WL150 WLAN adaptor 11.1 WConnectorTerminal block push-inENVIRONMENTAL Operating Temperature5~40ºCHumid ity20 ~ 80% RH non-condensingBROWSING REQUIREMENTOSM icrosoft Windows XP SP3, Vista SP1, 7 (x86/x64)ProcessorIntel 1.7 GHz, 512 MB RAMWeb BrowserMicrosoft Internet Explorer 6.0 or above, non-IEbrowsers require third-party plug-in
Тегло: 1.200 кг
