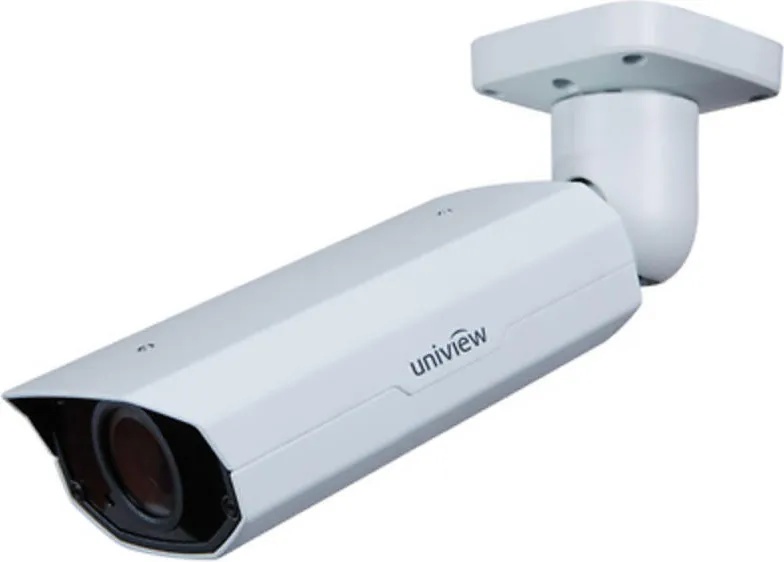

UNIVIEW IPC221ER-DF36
Uniview IPC221ER-DF36 е мрежова инфрачервена камера с висока резолюция, която е създадена за денонощно видеонаблюдение. Това Ви позволява ефективно да следите сигурността по всяко време.
Optics
*Day/night functionality
*Smart IR technology
*Up to 120dB WDR (Wide Dynamic Range)
*3D DNR (Digital Noise Reduction)
*Optical glass window with higher light transmittance
*IR anti-reflection window to increase the infrared transmittance
Compression
*Triple streams
*ROI (Region of Interest)
*9:16 corridor mode
*Customized OSD
Network
*ONVIF Conformance
Structure
*Support PoE power supply
*Wide temperature range: -35°C to 60°C (-31°F to 140°F)
*Wide voltage range of ±25%
*IP66
Camera
Sensor 1/3", 1.3 megapixel, progressive scan CMOS
Shutter Auto/Manual, 1/6~1/8000 s
Lens [email protected]; Angle of View (H): 76°
Day/Night IR-cut filter with auto switch (ICR)
Min. Illumination Colour: 0.06 Lux (F1.8, AGC ON)
0 Lux with IR
S/N >50dB
Image Rotation Supported
WDR 120dB
Video
Max. Resolution 1280 × 960
Video Compression H. 264, MJPEG
Frame Rate 960P (1280*960) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps
9:16 Corridor Mode Supported
ROI(Region of Interest) Supported
Video Streaming Triple
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
Audio
Audio Compression G. 711
Two-way audio Supported
Network
Protocols L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, SIP, 802.1x
Compatible Integration ONVIF, API
Interface
Audio I/O
Audio cable
Input: impedance 35 k; amplitude 2 V [p-p]
Output: impedance 600 ; amplitude 2 V [p-p]
Alarm I/O 1 / 1
Network 10M/100M Base-TX Ethernet
General
Power 12 V DC or PoE (IEEE802.3 af)
Power consumption: 3.5 W (7.5W with IR on)
Dimensions (L × W × H) 187.8 ×76 ×44 mm (7.4 × 3.0 × 1.7)
Weight 0.58 kg (1.28 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection IP66
Uniview IPC221ER-DF36 е мрежова инфрачервена камера с висока резолюция, която е създадена за денонощно видеонаблюдение. Това Ви позволява ефективно да следите сигурността по всяко време.
Optics
*Day/night functionality
*Smart IR technology
*Up to 120dB WDR (Wide Dynamic Range)
*3D DNR (Digital Noise Reduction)
*Optical glass window with higher light transmittance
*IR anti-reflection window to increase the infrared transmittance
Compression
*Triple streams
*ROI (Region of Interest)
*9:16 corridor mode
*Customized OSD
Network
*ONVIF Conformance
Structure
*Support PoE power supply
*Wide temperature range: -35°C to 60°C (-31°F to 140°F)
*Wide voltage range of ±25%
*IP66
Camera
Sensor 1/3", 1.3 megapixel, progressive scan CMOS
Shutter Auto/Manual, 1/6~1/8000 s
Lens [email protected]; Angle of View (H): 76°
Day/Night IR-cut filter with auto switch (ICR)
Min. Illumination Colour: 0.06 Lux (F1.8, AGC ON)
0 Lux with IR
S/N >50dB
Image Rotation Supported
WDR 120dB
Video
Max. Resolution 1280 × 960
Video Compression H. 264, MJPEG
Frame Rate 960P (1280*960) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps
9:16 Corridor Mode Supported
ROI(Region of Interest) Supported
Video Streaming Triple
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
Audio
Audio Compression G. 711
Two-way audio Supported
Network
Protocols L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, SIP, 802.1x
Compatible Integration ONVIF, API
Interface
Audio I/O
Audio cable
Input: impedance 35 k; amplitude 2 V [p-p]
Output: impedance 600 ; amplitude 2 V [p-p]
Alarm I/O 1 / 1
Network 10M/100M Base-TX Ethernet
General
Power 12 V DC or PoE (IEEE802.3 af)
Power consumption: 3.5 W (7.5W with IR on)
Dimensions (L × W × H) 187.8 ×76 ×44 mm (7.4 × 3.0 × 1.7)
Weight 0.58 kg (1.28 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection IP66
