Описание
Отлично решение на страхотна цена за наблюдение на вашия дом по всяко време и от всяко място!

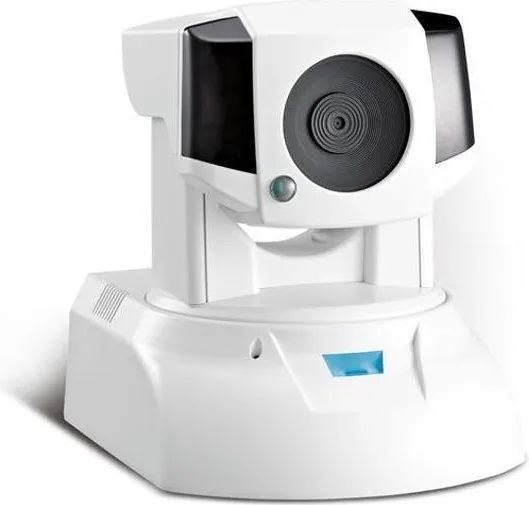

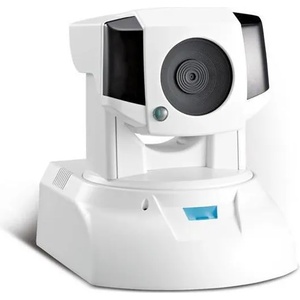

CS530 е управляема PTZ мрежова камера с VGA резолюция и 30 fps скорост на запис на видео. Разполага с вградени IR светодиоди за нощно наблюдение, може да се наблюдава/управлява отдалечено през Интернет с помощта на стандартен браузър или смартфон (отделни приложения за Android/iOS). Инсталира се изключително лесно с помощта на софтуерен уизард за настройка, притежава вграден микрофон и функция за двупосочна звукова комуникация.

Камера

Сензор за изображението: 1/7" Progressive scan CMOS
Обектив: фиксиран 2.00 мм, F. 28, dual-band fixed iris
Обхват на фокусиране: от 0.5 м до ~
Скорост на затвора: 1/5 до 1/16000 сек
Ъгъл на видимост: 50º хоризонтално
Ъгъл на завъртане: общо 340, по 170 наляво и надясно
Ъгъл на наклон: общо 100, 10 надолу и 90 и нагоре
Скоросто на завъртане / наклон: 45 / сек. завъртане; 60 / сек. наклон
Осветеност: 0 Lux с включени IR диоди (12 бр. ), разстояние до 10 м; 1.0 Lux в цветен режим
Видео
Компресия: MJPEG
Резолюции: 160х120, 320х240, 640х480 (30 fps)
Регулируеми размер и качество на изображението
AGC, AWB, AES
Регулиране на яркост, контраст, рязкост и наситеност на изображението
Мрежови функции
10/100 Mbps мрежов порт
Специални приложения за наблюдение от Android / iOS телефони
Други
Портове: Ethernet порт, микрофон, аудио изход, захранване
Захранване: 5V DC / 2A

Compro CS530 camera offers an advanced pan and tilt mechanical design with the latest cloud technology and super easy QR code cloud installation, let you install camera and start monitoring from your smartphone or tablet just in seconds. It's an ideal choice for securing homes, warehouses, restaurants, hotel lobbies, or any locations where there is a need to follow people or objects.

Day & Night Functionality with Built-in IR LEDs
12 built-in IR LEDs, an ambient light sensor and a dual-band lens enable the camera to capture clear images even in pitch darkness.

Motorized Pan / Tilt
The camera is able to provide flexible viewing angle thanks to its advanced 340-degree pan and 100-degree tilt mechanical design. And its maximum panning speed of 45 degrees per second is almost as good as a professional-grade PTZ camera.

10x Digital Zoom
The 10x digital zoom allows users to zoom into details in the live video and to clearly identify suspicious objects or people in the monitored area before engaging with them.

Plug-n-Play Functionality
Unlike other network cameras, installing this camera does not require any networking expertise. Nor is any sort of router setup required - simply plug in the cable, install the camera software, and then your Compro camera is ready to be viewed and shared on the Internet.

Wireless Connectivity (CS530W Only)
CS530W offers built-in support for 802.11 b/g/n wireless LAN to help you reduce the cable clutter and conveniently install the camera.

Two-way Audio Communication
The camera is capable of providing full-duplex and bi-directional audio communication through a built-in microphone, speaker and audio in/out port. The audio communication feature allows you to eavesdrop on the monitored area or broadcast your voice to visitors.

Motion Detection
The camera offers three individually configurable motion detection zones. The camera can be configured to automatically take snapshots or send out Email or SMS alert messages in response to any motion detected in user-defined areas.

SMS & Email Event Notification
The SMS & Email event notification feature enables the camera to send an alert message to specified recipients when it detects unusual events. The SMS notification service does not impose any monthly subscription fees, and the Email notification service supports popular webmail platforms.

Friendly Wall Mount Design
This PTZ camera comes with a wall mount plate friendly designed to allow for the fast and easy mounting and dismounting of the camera. Once secured on the wall or ceiling, the camera can then be easily configured via the setup wizard or remote viewer to rotate its image by 180
*Features and specifications are subject to change without prior notice.
*Seedonk service is now discontinued from Seedonk company. Please viewing the camera video from IE/Chrome from PC.

CAMERA
Image Sensor 1/7" progressive scan 2MP CMOS sensor
Lens Focal length: 2.0 mm
Max aperture ratio: F2.8
Fixed iris, dual-band
Zoom 10x digital zoom
Angle of View 50 horizontal
Pan Range -170 ~ +170 total of 340 degree
Tilt Range -10 ~ +90 total of 100 degree
Max Speed Pan 44/Sec. , Tilt 60/Sec.
Focusing Range 0.5 m ~ INF
Minimum Illumination IR Mode: 0 lux with built-in IR LEDs on (12 LEDs in total; effective distance up to 10m)
Color Mode: 1.0 lux
Shutter Time 1/5 ~ 1/16000 sec.

VIDEO
Image Settings M-JPEG
Resolution & Frame Rate 160x120, 320x240, 640x480
Frame Rate Up to 30 FPS at 640x480
Image Settings Adjustable image size and quality
AGC, AWB, AES
Configurable brightness, contrast, saturation and sharpness

AUDIO
Audio Communication Two-way audio with built-in microphone and output audio
Audio Compression G. 711 PCM 64Kbit/sec
Audio Input / Output MIC input / Audio output

NETWORK
Wireless LAN CS530W built-in 802.11 b/g/n wireless (CS530 not support wireless)
SecurityUser name / Password Protection
WEP/WPA/WPA2 encryption (wireless network)
Protocols TCP/IP, HTTP, UDP, FTP, ICMP, ARP, DHCP, NTP, DDNS, UPnP, RTP, RTSP, RTCP, SMTP, IGMP, 3GPP, IPv4
Ethernet 10/100 Base-T, autosensing, RJ-45

FIRMWARE
Firmware Support UPnP
Support online firmware update

WEB BROWSER
WebVUer Function Remotely view camera video, pan/tilt camera and adjust camera settings
2-way audio communication
Capture snapshots
Supported Viewing Devices PC, laptop, tablet with IE8
iPhone/iPad, BlackBerry, Android, WM, PDA, or cell phones with web browser (MJPEG mode)
Mac OS X 10.6 (LiveView in MJPEG mode only)

GENERAL
IR LED IR LED x12
Operating Condition 0 C ~ 40 C
Power Supply DC 5V/2A
Viewing System RequirementsComputer with 2.8GHz dual-core processor and 2GB memory or above
Operating system: Windows XP SP3, Vista SP1, Windows 7
Internet browser: Internet Explorer 8.0 or later; non-IE browsers require 3rd-party VLC plug-in
Dimensions 105 x 128.6 x 125.5 mm
Продукт известен още и като CS 530
