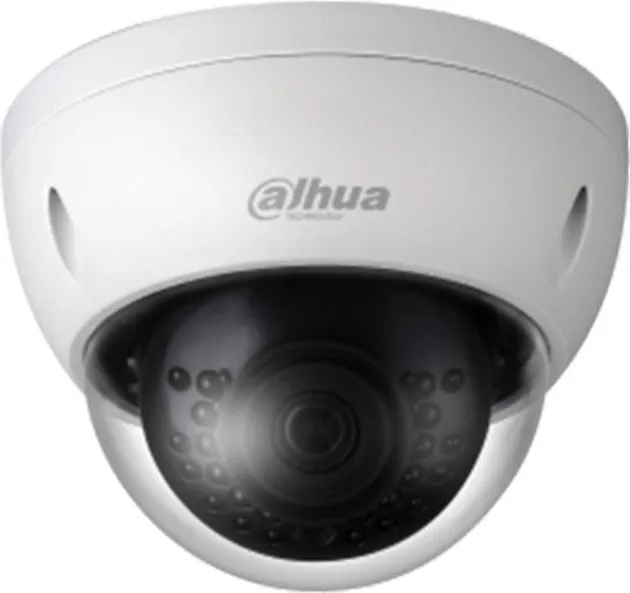

Dahua IPC-HDBW1420E-0280B

4MP IR Mini-Dome Network Camera
> 1/3 4Megapixel progressive CMOS
> H. 264+ & H. 264 dual-stream encoding
> 20fps@4M(2688×1520) &25/30fps@3M(2304×1296)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6 mm optional)
> Max IR LEDs Length 30m
> IP67, IK10, PoE

Camera:

Image Sensor- 1/3 4Megapixel progresive CMOS

Effective Pixels- 2688(H)x1520(V)

RAM/ROM- 256MB/16MB

Scanning System- Progressive

Electronic Shutter Speed- Auto/Manual, 1/3(4)~1/100000s

Minimum Illumination- 0.31Lux/F2.2(Color), 0Lux/F2.2(IR on)

S/N Ratio- More than 56dB

IR Distance- Distance up to 30m(98ft)

IR On/Off Control- Auto/ Manual

IR LEDs- 12

Lens:

Lens Type- Fixed

Mount Type- Board-in

Focal Length- 2.8 mm (3.6 mm optional)

Max. Aperture- F2.0/F2.2

Angle of View- H:106°/83°, V:56°/44°

Focus Control- Fixed

Close Focus Distance- N/A

DORI Distance:
Lens:
2.8 mm:
Detect- 63m(207ft)
Observe- 25m(82ft)
Recognize- 13m(43ft)
Identify- 6m(20ft)

3.6 mm:
Detect- 80m(262ft)
Observe- 32m(105ft)
Recognize- 16m(52ft)
Identify- 8m(26ft)

PTZ:

Pan/Tilt Range- Pan:0° ~355° ;Tilt:0° ~65° ;Rotation:0° ~355°

Video:

Compression- H. 264+/H. 264

Streaming Capability- 2 Streams

Resolution:
4M(2688x1520/2560x1440)/3M(2304×129 6)/
1080P(1920×1080)/720P(1280×720)/
D1(704×576/704×480)/ CIF(352×288/352×240)

Frame Rate:
4M(1 ~ 20fps)/3M (1 ~ 25/30fps)/2M (1 ~ 25/30fps)
D1/CIF(1 ~ 25/30fps)

Bit Rate Control- CBR/VBR

Bit Rate- H264H:80K ~ 10240Kbps

Day/Night- Auto(ICR) / Color / B/W

BLC Mode- BLC / HLC / DWDR

White Balance- Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control- Auto/Manual

Noise Reduction- 3D DNR

Motion Detetion- Off / On (4 Zone, Rectangle)

Region of Interest- Off / On (4 Zone)

Electronic Image- Support

Smart IR- Support

Digital Zoom- 16x

Flip- 0°/90°/180°/270°

Mirror- Off / On

Privacy Masking- Off / On (4 Area, Rectangle)

Audio:

Compression- N/A

Network:

Ethernet- RJ-45 (10/100Base-T)

Protocol:
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP ;FTP;
DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP ;NTP;
Bonjour;802.1x;Multicast;ICMP;IGMP;

Interoperability- ONVIF, PSIA, CGI

Streaming Method- Unicast / Multicast

Max. User Access- 10 Users/20 Users

Edge Storage- NAS(Network Attached Storage), Local PC for instant recording

Web Viewer- IE, Chrome, Firefox, Safari

Management Software- Smart PSS, DSS, Easy4ip

Smart Phone- iPhone, iPad, Android Phone

Certifications:
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B

Interface

Video Interface- N/A

Audio Interface- N/A

RS485- N/A

Alarm- N/A

Electrical

Power Supply- DC12V PoE (802.3af)(Class 0)

Power Consumption-
