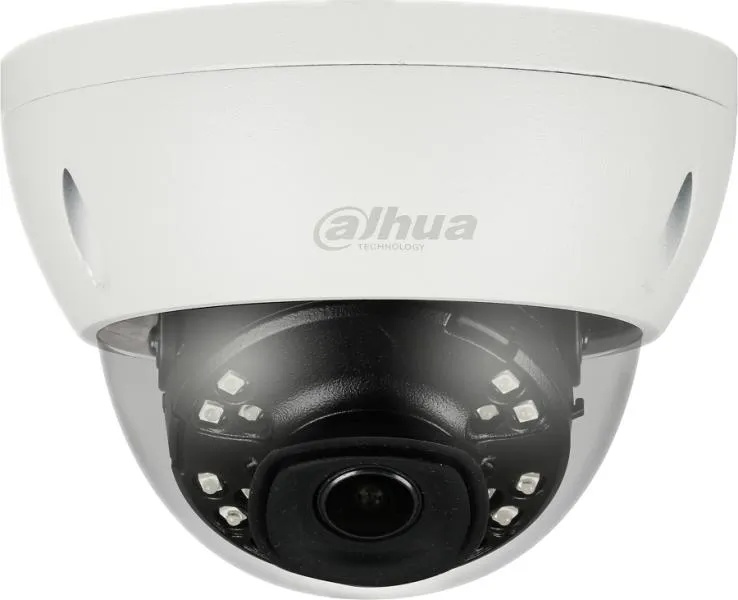

· 1/3 4Megapixel progressive scan CMOS
· H. 265&H. 264 triple-stream encoding
· 25/30fps@4M(2688×1520)
· Smart Detection supported
· WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
· 2.8mm fixed lens (3.6mm, 6mm optional)
· 1/1 Alarm in/out, 1/1 audio in/out
· Max. IR LEDs Length 30m
· Micro SD memory, IP67, IK10, PoE

Technical Specification

Camera
Image Sensor: 1/34Megapixel progressive scan CMOS
Effective Pixels: 2688(H)x1520(V)
RAM/ROM: 512MB/32MB
Scanning System: Progressive
Electronic Shutter: Speed Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination
0.06Lux/F1.6( Color, 1/3s, 30IRE)
0.4Lux/F1.6( Color, 1/30s, 30IRE)
0Lux/F1.6(IR on)

S/N Ratio: More than 50dB
IR Distance: Distance up to 30m (98ft)
IR On/Off: Control Auto/ Manual
IR LEDs: 18

Lens
Lens Type: Fixed
Mount Type: Board-in
Focal Length: 2.8mm (3.6mm, 6mm optional）
Max. Aperture: F1.6 (F1.6, F1.6)
Angle of View: H: 104° (83°, 55°), V: 55° (45°, 31°)
Optical Zoom: N/A
Focus Control: Fixed
Close Focus Distance: 0.9m (1.5m, 3.1m)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8 mm56m(184ft) 22m(72ft)11m(36ft)6m(20ft)
3.6 mm80m(262ft) 32m(105ft)16m(52ft)8m(26ft)
6.0 mm120m(394ft) 48m(157ft)24m(79ft)12m(39ft)

Pan/Tilt/Rotation
Pan/Tilt/Rotation Range: Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚

Intelligence
IVS: Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions: Face Detection

Video
Compression: H. 265+/H. 265/H. 264+/H. 264
Streaming Capability: 3 Streams
Resolution
4M(2688×1520)/3M(2304×1296)/
1080P(1920×1080)/1.3M(1280x960)/
720P(1280×720)/D1(704×576/704×480 )/
VGA(640×480)/CIF(352×288/352×240)

Frame Rate
Main Stream: 4M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 720P(1~25/30fps)

Bit Rate Control: CBR/VBR
Bit Rate: H. 264: 24K ~ 10240Kbps, H. 265: 14K ~ 9984Kbps
Day/Night: Auto(ICR) / Color / B/W
BLC Mode: BLC / HLC / WDR(120dB)

White Balance: Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control: Auto/Manual
Noise Reduction: 3D DNR
Motion Detetion: Off / On (4 Zone, Rectangle)
Region of Interest: Off / On (4 Zone)
Electronic Image Stabilization(EIS): N/A
Smart IR: Support
Defog: N/A
Digital Zoom :
Flip: 0°/90°/180°/270°
Mirror: Off / On
Privacy Masking: Off / On (4 Area, Rectangle)

Audio
Compression: G. 711a/ G. 711Mu/ AAC/ G. 726

Network
Ethernet: RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method: Unicast / Multicast
Max. User Access: 10 Users /20 Users
Edge Storage: NAS, Local PC for instant recording, Mirco SD card 128GB
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: Smart PSS, DSS, Easy4ip
Smart Phone: IOS, Android

Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B

Interface
Video Interface: N/A
Audio Interface: 1/1 channel In/Out
RS485: N/A
Alarm 1 channel In: 5mA 5VD, 1 channel Out: 300mA 12VDC

Electrical
Power Supply: DC12V, PoE (802.3af)(Class 0)
Power Consumption:
