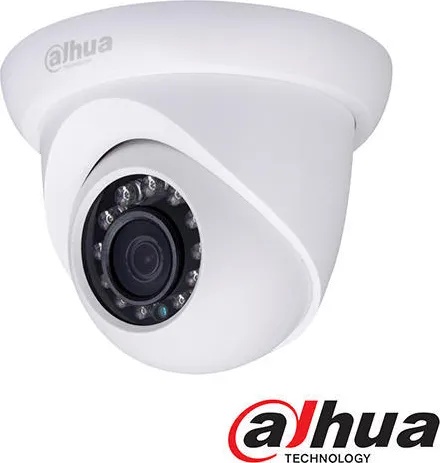

1.3 MP H. 264 True DAY/NIGHT IP куполна камера или HD 960P (1280x960)/25FPS. /br

1/3 progressive scan CMOS Sensor.

Обектив фиксиран 3.6mm/F2.1, IR cut Filter. H. 264/H. 264H/H. 264B/MJPEG, резолюция 960P (1280x960)/25FPS, 720P (1280x720)/25FPS, VGA (640x480)/25fps.

3D-DNR шумов филтър, Digital WDR, AGC, AWB, Corridor mode. Вграден IR LED - с дистанция на светене до 30m. 0.08Lux/F2.1 (Color), 0Lux/F2.1 (IR on).

Network: RJ-45 (10/100Base-T), Communication protocol: IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS; Поддържа ONVIF, CGI.

Наблюдение през мобилен телефон (iPhone, iPad, Android, Windows Phone).

Температура - 30°C ~ 60°C; захранване DC12V, 3.8W, PoE (802.3af).

IP67- подходяща за външен монтаж.



Model
DH-IPC-HDW1120S

Camera

Image Sensor
1/3 1.3Megapixel progressive scan CMOS

Effective Pixels
1280(H) ´ 960(V)

Scanning System
Progressive

Electronic Shutter Speed
Auto/Manual, 1/3s~1/30000s

Min. Illumination
0. 08Lux/F2.1(Color), 0Lux/F2.1(IR on)

S/N Ratio
More than 50dB

Video Output
N/A

Camera Features

Max. IR LEDs Length
30m

Day/Night
Auto(ICR)/Color/B/W

Backlight Compensation
BLC / HLC / DWDR

White Balance
Auto/Manual

Gain Control
Auto/Manual

Noise Reduction
3D

Privacy Masking
Up to 4 areas

Lens

Focal Length
3.6mm(2.8mm, 6mm optional)

Max Aperture
F2.1(F2.0, F2.6)

Focus Control
Manual

Angle of View
H: 71°(89°, 47°)

Lens Type
Fixed lens

Mount Type
Board-in Type

Video

Compression
H. 264/ H. 264H/ H. 264B/ MJPEG

Resolution
1.3M(1280x960)/720P(1280×720)/ D1(704×576/704×480) /

CIF(352×288/352×240)

Frame Rate
Main Stream
1.3M/720P(1 ~ 25/30fps)

Sub Stream
D1(1 ~ 25/30fps)

Bit Rate
H. 264: 4kbps～8192bps

Corridor Mode
Support

Audio

Compression
N/A

Interface
N/A

Network

Ethernet
RJ-45 (10/100Base-T)

Wi-Fi
N/A

Protocol
IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS

Compatibility
ONVIF, CGI

Max. User Access
20 users

Smart Phone
iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot
N/A

RS485
N/A

Alarm
N/A

PIR Sensor Range
N/A

General

Power Supply
DC12V, PoE (802.3af)

Power Consumption
