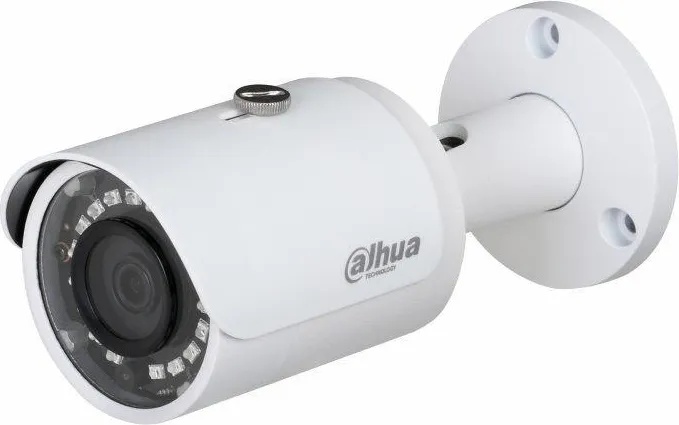

IPC-HFW1230S

2MP IR Mini-Bullet Network Camera

> 1/2.7 2Megapixel progressive CMOS

> H. 265& H. 264 dual-stream encoding

> 25/30fps@1080P(1920×1080)

> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC

> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

> 2.8 mm fixed lens (3.6mm optional)

> Max IR LEDs Length 30m

> IP67, PoE

Camera:

Image Sensor- 1/2.7 2Megapixel progresive CMOS

Effective Pixels- 1920(H) x1080(V)

RAM/ROM- 256MB/128MB

Scanning System- Progressive

Electronic Shutter Speed- Auto/Manual, 1/3~1/100000s

Minimum Illumination:
- 0.08Lux/F2.0( Color, 1/3s, 30IRE)

- 0.3Lux/F2.0( Color, 1/30s, 30IRE)

- 0Lux/F2.0(IR on)

S/N Ratio- More than 50dB

IR Distance- Distance up to 30m(98ft)

IR On/Off Control- Auto/ Manual

IR LEDs- 18

Lens:
Lens Type- Fixed

Mount Type- Board-in

Focal Length- 2.8 mm (3.6 mm optional)

Max. Aperture- F2.0/F2.0

Angle of View- H:104°/92°, V:55°/50°

Focus Control- Fixed

Close Focus Distance- 0.6m(0.9m)

DORI Distance:
Lens:
2.8 mm:
Detect- 40(131ft)
Observe- 16(52ft)
Recognize- 8(26ft)
Identify- 4(13ft)

3.6 mm:
Detect- 53(174ft)
Observe- 21(69ft)
Recognize- 11(36ft)
Identify- 5(16ft)

PTZ:
Pan/Tilt Range- Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

Intelligence:
Event Trigger- Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly

IVS- Tripwire, Intrusion

Video:
Compression- H. 265/H. 264H/MJPEG(Sub Stream)

Smart Codec- Support H. 265+/H. 264+

Streaming Capability- 2 Streams

Resolution:
- 1080P(1920×1080)/1.3M(1280×960)/

- 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)

Frame Rate:
- Main Stream: 1080P(1 ~ 25/30fps)

- Sub Stream: D1(1 ~ 25/30fps)

Bit Rate Control- CBR/VBR

Bit Rate:
- H. 265: 12K ~ 6400Kbps

- H. 264: 32K ~ 10240Kbps

Day/Night- Auto(ICR) / Color / B/W

BLC Mode- BLC / HLC / DWDR

White Balance- Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control- Auto/Manual

Noise Reduction- 3D DNR

Motion Detection- Off / On (4 Zone, Rectangle)

Region of Interest- Off / On (4 Zone)

Electronic Image- Support

Smart IR- Support

Digital Zoom- 16x

Flip- 0°/90°/180°/270°

Mirror- Off / On

Privacy Masking- Off / On (4 Area, Rectangle)

Audio:
Compression- N/A

Network:

Ethernet- RJ-45 (10/100Base-T)

Protocol:
- HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMT P;

- FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP ;

- NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;

- TLS

Interoperability- ONVIF Profile S&G, API

Streaming Method- Unicast / Multicast

Max. User Access- 10 Users / 20 Users

Edge Storage-
- NAS
- Local PC for instant recording

Web Viewer- IE, Chrome, Firefox, Safari

Management Software- Smart PSS, DSS, DMSS

Smart Phone- IOS, Android

Certifications:
- CE (EN 60950:2000)

- UL:UL60950-1

- FCC: FCC Part 15 Subpart B

Interface:

Video Interface- N/A

Audio Interface- N/A

RS485- N/A

Alarm- N/A

Electrical

Power Supply- DC12V, PoE (802.3af)(Class 0)

Power Consumption-

Продукт известен още и като IPC HFW 1431 S 0280 B, IPCHFW1431S0280B, IPC HFW1431S 0280B, IPC HFW1431S-0280B, IPC-HFW1431S-0280 B
