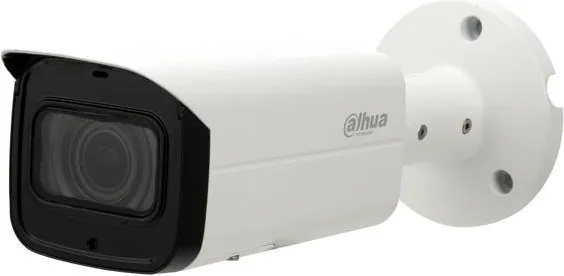

Dahua IPC-HFW4231T-ASE

1/2.8 2Megapixel progressive scan STARVIS CMOS
H. 265&H. 264 triple-stream encoding
50/60fps@1080P(19201080)
Smart Detection supported
WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
3.6mm fixed lens (6mm optional)
Max. IR LEDs Length 60m
Micro SD Memory, IP67, IK10, PoE

Technical Specification

Camera:

Image Sensor- 1/2.8 2Megapixel progressive scan CMOS

Effective Pixels- 1920(H) x 1080(V)

RAM/ROM- 256MB/32MB

Scanning System- Progressive

Electronic Shutter Speed- Auto/Manual, 1/3~1/100000s

Minimum Illumination:
0.009Lux/F1.6( Color, 1/3s, 30IRE)
0.07Lux/F1.6( Color, 1/30s, 30IRE)
0Lux/F1.6(IR on)

S/N Ratio- More than 50dB

IR Distance- Distance up to 60m (197ft)

IR On/Off Control- Auto/ Manual

IR LEDs- 4

Lens:

Lens Type- Fixed

Mount Type- Board-in

Focal Length- 3.6mm (6mm optional)

Max. Aperture- F1.6 (F1.6)

Angle of View- H: 87 (52), V: 46 (30)

Optical Zoom- N/A

Focus Control- Fixed

Close Focus Distance- 1.2m(2.4m)

DORI Distance:
Lens:
3.6 mm:
Detect- 55m(180ft)
Observe- 22m(72ft)
Recognize- 11m(36ft)
Identify- 6m(20ft)

6.0 mm:
Detect- 83m(289ft)
Observe- 33m(108ft)
Recognize- 17m(56ft)
Identify- 8m(26ft)

Pan/Tilt/Rotation:

Pan/Tilt/Rotation Range- Pan:0 ~360 ; Tilt:0 ~90 ; Rotation:0 ~360

Intelligence:

IVS- Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions- Face Detection

Video:

Compression- H. 265+/H. 265/H. 264+/H. 264

Streaming Capability- 3 Streams

Resolution:
1080P(1920x1080)/1.3M(1280x960)/
720P(1280720)/D1(704576/704480)/
VGA(640480)/CIF(352288/352240)

Frame Rate:
Main Stream: 1080P (1~50/60fps)
Sub Stream: D1(1~50/60fps)
Third Stream: 1080P(1~25/30fps)

Bit Rate Control- CBR/VBR

Bit Rate:
- H. 264: 24K ~ 10240Kbps
- H. 265: 14K ~ 9984Kbps

Day/Night- Auto(ICR) / Color / B/W

BLC Mode- BLC / HLC / WDR(120dB)

White Balance- Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control- Auto/Manual

Noise Reduction- 3D DNR

Motion Detetion- Off / On (4 Zone, Rectangle)

Region of Interest- Off / On (4 Zone)

Electronic Image Stabilization(EIS)- N/A

Smart IR- Support

Defog- N/A

Digital Zoom- 16x

Flip- 0/90/180/270

Mirror- Off / On

Privacy Masking- Off / On (4 Area, Rectangle)

Audio:

Compression- G. 711a/ G. 711Mu/ AAC/ G. 726

Network:

Ethernet- RJ-45 (10/100Base-T)

Protocol:
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP

Interoperability- ONVIF, PSIA, CGI

Streaming Method- Unicast / Multicast

Max. User Access- 10 Users /20 Users

Edge Storage:
- NAS
- Local PC for instant recording
- Mirco SD card 128GB

Web Viewer- IE, Chrome, Firefox, Safari

Management Software- Smart PSS, DSS, Easy4ip

Smart Phone- IOS, Android

Certifications:
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B

Interface:

Video Interface- N/A

Audio Interface- 1/1 channel In/Out

RS485- N/A

Alarm:
- 1 channel In: 5mA 5VDC
- 1 channel Out: 300mA 12VDC

Electrical:

Power Supply- DC12V, PoE (802.3af)(Class 0)

Power Consumption-
