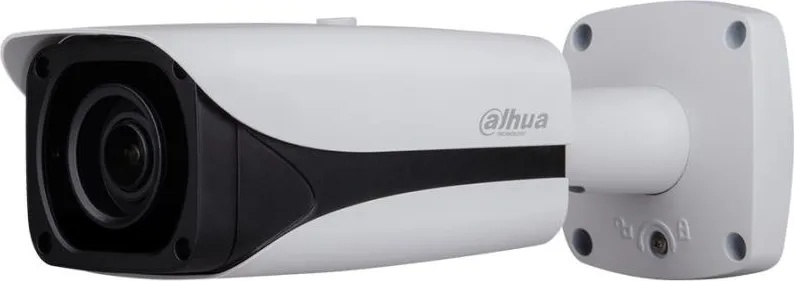

Dahua IPC-HFW5431E-Z

IPC-HFW5431E-Z
4MP WDR IR Bullet Network Camera
> 1/3 4Megapixel progressive scan CMOS
> H. 265&H. 264 triple-stream encoding
> 25/30fps@4Mp(2688×1520)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.7mm ~12mm motorized lens
> 2/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 50m
> Micro SD memory, IP67, PoE

Camera:

Image Sensor- 1/3 4Megapixel progressive scan CMOS

Effective Pixels- 2688(H) x 1520(V)

RAM/ROM- 512MB/32MB

Scanning System- Progressive

Electronic Shutter Speed- Auto/Manual, 1/3~1/100000s

Minimum Illumination:
- 0.03Lux/F1.4 (Color, 1/3s, 30IRE)

- 0.3Lux/F1.4 (Color, 1/30s, 30IRE)

- 0Lux/F1.4(IR on)

S/N Ratio- More than 50dB

IR Distance- Distance up to 50m (164ft)

IR On/Off Control- Auto/ Manual

IR LEDs- 4

Lens:

Lens Type- Motorized/ Auto Iris(DC)

Mount Type- Board-in

Focal Length- 2.7mm~12mm

Max. Aperture- F1.4

Angle of View- H: 100°~35°, V:54°~20°

Optical Zoom- 4x

Focus Control- Motorized

Close Focus Distance- 0.3m

DORI Distance:
Lens:
W:
Detect- 68(223ft)
Observe- 27m(89ft)
Recognize- 14m(46ft)
Identify- 7m(23ft)

T:
Detect- 192m(630ft)
Observe- 77m(253ft)
Recognize- 39m(128ft)
Identify- 19m(62ft)

Pan/Tilt/Rotation :
Pan/Tilt/Rotation Range- Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚

Intelligence:

IVS- Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions- Face Detection

Video:
Compression- H. 265+/H. 265/H. 264+/H. 264

Streaming Capability- 3 Streams

Resolution:
- 4M(2688×1520)/3M(2304×1296)/

- 1080P(1920×1080)/1.3M(1280x960)/

- 720P(1280×720)/D1(704×576/704×480)/

- VGA(640×480)/CIF(352×288/352×240)

Frame Rate:
- Main Stream: 4M(1~25/30fps)

- Sub Stream: D1(1~25/30fps)

- Third Stream: 720P(1~25/30fps)

Bit Rate Control- CBR/VBR

Bit Rate- H. 264: 24~10240Kbps H. 265: 14~9984Kbps

Day/Night- Auto(ICR) / Color / B/W

BLC Mode- BLC / HLC / WDR(120dB)

White Balance- Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control- Auto/Manual

Noise Reduction- 3D DNR

Motion Detetion- Off / On (4 Zone, Rectangle)

Region of Interest- Off / On (4 Zone)

Electronic Image Stabilization (EIS)- N/A

Smart IR- Support

Defog- N/A

Digital Zoom- 16x

Flip- 0°/90°/180°/270°

Mirror- Off / On

Privacy Masking- Off / On (4 Area, Rectangle)

Audio:

Compression- G. 711a/ G. 711Mu/ AAC/ G. 726

Network:

Ethernet- RJ-45 (10/100Base-T)

Protocol:
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

Interoperability- ONVIF, PSIA, CGI

Streaming Method- Unicast / Multicast

Max. User Access- 10 Users /20 Users

Edge Storage:
- NAS

- Local PC for instant recording

- Mirco SD card 128GB

Web Viewer- IE, Chrome, Firefox, Safari

Management Software- Smart PSS, DSS, Easy4ip

Smart Phone- IOS, Android

Certifications:

- CE (EN 60950:2000)

- UL:UL60950-1

- FCC: FCC Part 15 Subpart B

Interface:

Video Interface- 1 Port(For adjustment only)

Audio Interface- 1/1 channel In/Out

RS485- N/A

Alarm:
- 2 channel In: 5mA 5VDC

- 1 channel Out: 300mA 12VDC

Electrical:

Power Supply- DC12V, PoE (802.3af)(Class 0)

Power Consumption-
