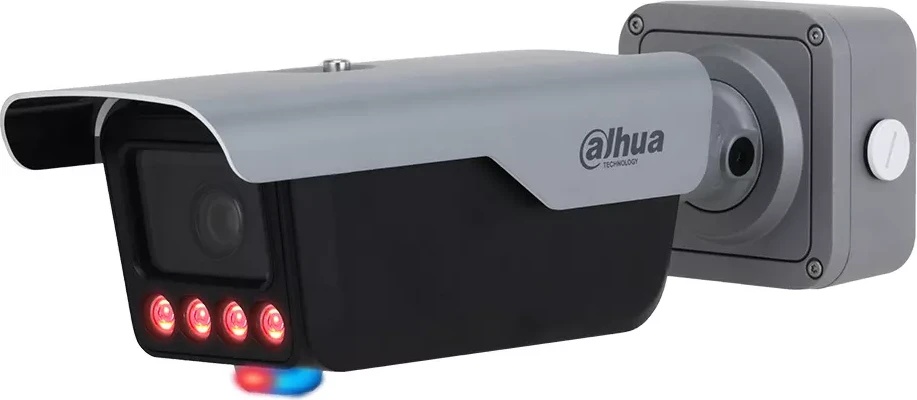

ITC413-PW4D Series Dahua Access ANPR Camera> High-performance CMOS image sensor and processor that supports continuously extracting metadata 24/7. > Adopts intelligent deep learning algorithms and supports recognition of unlicensed vehicles and the type, brand and color of vehicles. > Built-in signal port, data port, communication port and remote controllers assist in controlling external devices such as entry and exit barriers. > Built-in LED for simplified installation and commissioning. > All-in-one structure with junction box and bracket, and it is also low power consumption. > IP67 and IK10 rated. > Supports intrusion and loitering detection and triggers light and voice alarms when perimeter events occur to actively deter targets. Custom audios can also be imported and edited. > Easily adapts to scenarios through its motorized vari-focal lens.   Camera Imag e Sensor 1/1.8" CMOSImage Resolution 2688 × 1520Electronic Shutter Speed Auto/Manual 1/25 s–1/100,000 sMax. Detection Speed DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:120 km/hMin. Illumination DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:
0.001 [email protected] (Color, 30 IRE)
0.0002 [email protected] (B/W, 30 IRE)
0 Lux (Illuminator on)ROM 4 GBRAM 1 GBS/N Ratio >56 dBScanning System progressive scanning Lens Focal Length DHI-ITC413-PW4D-Z38 mm–32 mmField of View DHI-ITC413-PW4D-Z3
H: 39.9° (W)—15.1° (T)
V: 21.8° (W)—8.5° (T)
D: 46.6° (W)—17.4° (T)Focus Control Auto, area focus, manualNumber of Lens 1Lens Type Motorized Vari-focalMax. Aperture DHI-ITC413-PW4D-Z3:1.6Iris Control
DHI-ITC413-PW4D-Z3 P-IrisDORI Distance Lens Detect Observe Recognize IdentifyW:(DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3) 160.0 m (524.93 ft) 64.0 m (209.97 ft) 32.0 m (104.99 ft) 16.0 m (52.49 ft)T:(DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3) 406.9 m (1334.97 ft) 162.8 m (534.12 ft) 81.4 m (267.06 ft) 40.7 m (133.53 ft) Illuminator Illuminat or Number 4Illuminator On/Off Control Auto, manualIlluminator Type DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-Z3:Dual Illuminators (730 nm IR/warm light)Illumination Distance DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:
ANPR: 30 m (98.43 ft)
Video monitoring: 60 m (196.85 ft)Smart Illumination According to the brightness of the environment, the camera automatically adjusts the intensity of its light to reveal the details of moving targets. Devices with warm light can automatically adjust the light intensity according to the time. Infrared Wavelength DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-Z3:730 nm Video Video Resolution Main stream: 4M (2688 × 1520)/1080p (1920 × 1080)/720p (1280 × 720)
Sub stream: 720p (1280 × 720)/960H (960 × 576, 960 × 480)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240)Stream PAL: Main stream (2688 × 1520@25 fps, 1920 × 1080@25 fps, 1280 × 720@25 fps), sub stream (1280 × 720@25 fps, 960 × 576@25 fps, 704 × 576@25 fps, 352 × 288@25 fps);
NTSC: Main stream (2688 × 1520@30 fps, 1920 × 1080@30 fps, 1280 × 720@30 fps), sub stream (1280 × 720@30 fps, 960 × 480@30 fps, 704 × 408@30 fps, 352 × 240@30 fps)Video Compression H. 264H; H. 264B; H. 264M by default; H. 265; MJPEG; H. 264MVideo Bit Rate H. 264B: 2,179 kbps–13,074 kbps
H. 264M: 2,179 kbps–13,074 kbps
H. 264H: 2,179 kbps–13,074 kbps
H. 265: 2,179 kbps–13,074 kbps
MJPEG: 6,537 kbps–39,223 kbpsScene Self-adaptation (SSA) YesGain Control Manual; AutoNoise Reduction 3D NRRegion of Interest (RoI) Yes, 3Image Tampering Prevention Yes. Watermarks can be added to videos and images. The watermark can also be verified. Bit Rate Control CBR; VBR Function Storage Bult-in TF card port. Supports Kingston 16 G, 32 G, 128 G, 256 G; Dahua card 16 G, 32 G, 128 G, 256 G; SanDisk 16 G, 32 G, 128 G, 256 GRestricted List/Trusted List Allowlist: 110,000
Blocklist: 110,000IVS Intrusion detection, loitering detection, up to 4 areas can be set. Basic Event Alarms for events of defocus, no storage card, storage card no space, storage card error, network disconnection, IP conflict, and illegal access. Sound and Light Alarm Yes, blue & red indicator, and supports broadcasting custom audio. Alarm Linkage Upload to FTP/Memory card, notify monitoring center, send e-mail, trigger alert output, snapshot and active deterrenceCapture Distance DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:8 m–30 m (26.25 ft–98.43 ft)Detected Width DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:6 m–8 m (19.69 ft–26.25 ft) Network Network Protocol HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoEAPI YesSDK YesInteroperability ONVIF (Profile S/Profile T); CGI; ITSAPI; P2PManagement Software DSS Pro; DSS Express; Cybercity; Smart PSSSecurity Username and password; MAC address; HTTPS; IEEE 802.1x; network access controlBrowser Plug in:
IE 9, 10, 11.
Chrome 52 and earlier versions
Firefox 42 and earlier versions
No plug in:
Chrome 92 and later versions Image Image Encoding Format JPEGImage Setting Brightness; contrast; saturation; gamma; sharpness; gain; white balanceDay/Night IR filter, support three modes: color/B/W/autoWDR 140 dBHLC YesBLC YesWhite Balance Auto; Regional Custom; Manual; Outdoor; Natural; Street LampDigital Detail Enhancement (DDE) YesOSD Overlay Supports overlay of time; address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type) Audio Audio Port YesBuilt-in MIC Yes; Pick-up distance: 3 m (9.84 ft), Sampling Rate: 48 k. Built-in Speaker Yes; Power: 2 W Port Audio Output 1 channel (RCA port)Network Port RJ-45 (10/100/1000 self-adaptive Ethernet Port)Alarm Input 2, optocoupler input (wet node on-off value: 5 V)Alarm Output 2, relay output (2A 30 VDC/0.5A 125 VAC), which can connect to devices such as barriersRS-485 2 (half duplex, Transparent, DHRS, Push Data through Serial Port)Reset Button YesWiegand 1 channel, SHA-1 26 bit Performance Maximum Number of Passed Vehicles 10,000Max. Number of Connections 10 Intelligence AI Recognition Recognizes vehicle types, vehicle signs, vehicle color, vehicle plate, plate, vehicle without plate. Video Metadata Displays the intelligent frame, plate and vehicle paths. Vehicle Brand Recognizes 147 vehicle logos. Vehicle Color Recognizes 12 colors: Grey, black, white, silver, blue, green, purple, red, orange, pink, brown, and yellow. Vehicle Type Recognition Recognizes 10 vehicle types: Large Bus, Heavy Truck, Medium Truck, Sedan, Van, Light Truck, Medium Bus, SUV, MPV, PickupCountry and Region Supported by ANPR Baseline support:
GCC (U. A. E. , Saudi Arabia, Morocco, Oman, Iraq, Egypt, Jordan, Qatar, Kuwait, Bahrain, Lebanon)
Europe (Netherlands, France, Germany, Britain, Italy, Poland, Belgium, Bulgaria, Serbia, Slovakia, Spain, Denmark, Turkey, Israel, Czech Republic, Bosnia and Herzegovina, Switzerland, Austria, Hungary, Romania, Lithuania, Latvia, Sweden, Estonia, Portugal, Greece, Slovenia, Luxembourg, Palestine, Lebanon, Ireland, Finland, Norway, Croatia, North Macedonia)
Russian-speaking regions (Russia, Ukraine, Kyrgyzstan, Uzbekistan, Moldova, Lithuania, Latvia, Georgia, Azerbaijan, Turkmenistan)
SADC (Uruguay, Paraguay, Brazil, Argentina, Chile, Colombia, Peru, Ecuador, Guyana)
North America (United States, Canada)
Can be customized:
Mongolia, Japan, Philippines, Vietnam, Laos, Cambodia, myanmar, Thailand, Malaysia, Singapore, Indonesia, Bangladesh, India, Pakistan, Curacao, Mexico, Guatemala, Costa Rica, Australia, New Zealand, Tunisia, Algeria, Ethiopia, Tanzania, Uganda, Equatorial Guinea, Nigeria, Zambia, Mozambique, South Africa, MauritiusCapture Rate In the recommended installation and lighting condition, the vehicle capture rate ≥ 99%Recognition Rate In the recommended installation and lighting condition, the recognition rate for positive and departing vehicles≥ 96%; the recognition rate for European vehicle plates ≥ 98% General Remote control YesCommunication Band 433 MHz; 868 MHzRemote Control Distance 15 m (49.21 ft) (In an open, undisturbed environment)Power Supply 12 VDC, 2 A and POE:802.3at, Type 2, Class 4, (44V to 57V), 0.455A to 0.351A, max. 20WPower Consumption Power consumption in different conditions:
No lighting < 6 W
Lighting
