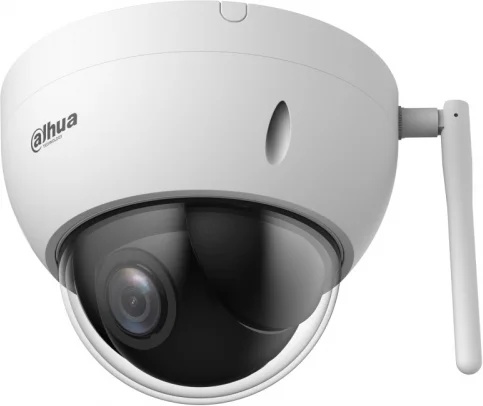

SD22204DB-GNY-W 2MP 4x Starlight WizSense Network PTZ Camera> 1/2.8" STARVIS CMOS. > Powerful 4x optical zoom. > Max. 25/30fps@1080P. > Max 100°/s pan speed. > Supports face detection. > Support Wi-Fi. > IP66, IK10. > SMD 3.0. > 6000V lightning-proof   Specifications:   Camera Image Sensor 1/2.8" CMOSPixel 2 MPMax. Resolution 1920 (H) × 1080 (V)ROM 128 MBRAM 256 MBElectronic Shutter Speed 1/1 s–1/30,000 sScanning System ProgressiveMin. Illumination Color: 0.005 [email protected]
B/W: 0.0005 [email protected] Lens Focal Length 2.8 mm–12 mmMax. Aperture F1.6–F3.0Field of View H: 99.1°–31.9°; V: 53.4°–18.0°; D: 117.7°–36.6°Optical Zoom 4×Focus Control Auto; semi-auto; manualClose Focus Distance 1.5 m (4.92 ft)Iris Control FixedDORI Distance Detect Observe Recognize Identify165.5 m (542.98 ft) 65.4 m (214.57 ft) 33.1 m(108.60 ft) 16.6 m (54.46 ft) PTZ Pan/Tilt Range Pan: 0°–355°
Tilt: 0°–90°Manual Control Speed Pan: 0.1°/s–100°/sTilt: 0.1°/s–60°/sPreset Speed Pan: 100°/s; Tilt: 60°/sPreset 300Tour 8 (up to 32 presets per tour)Pattern 5Idle Motion Pattern; Preset; TourPTZ Protocol SD Pelco-P/D(Auto recognition) Intelligence IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classificationFace Detection Supports face detection, face track, snapshot, and face enhancement;
Supports face cutout: Face, one-inch photo;
Capturing strategies include real-time capturing and quality first. SMD Yes Video Video Compression H. 264H; H. 264B; Smart H. 265+; H. 264; H. 265; MJPEG(Sub Stream); Smart H. 264+Streaming Capability 3 streamsResolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); VGA (640 × 480)Video Frame Rate Main stream: 1080p/1.3M/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)Bit Rate Control CBR/VBRVideo Bit Rate H. 264: 2048 kbps–8192 kbps
H. 265: 768 kbps–6400 kbpsDay/Night Auto (ICR)/Color/B/WBLC YesWDR DWDRHLC YesWhite Balance Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lampGain Control Auto; manualNoise Reduction 2D NR; 3D NRMotion Detection YesRegion of Interest (RoI) YesImage Stabilization YesDefog Electronic defogDigital Zoom 16×Image Rotation 180°S/N Ratio ≥ 55 dB Network Network Port RJ-45 (10/100 Base-T)Wi-Fi YesWi-Fi–Wireless Standard 802.11n; IEEE802.11b; 802.11gWi-Fi–Wireless Frequency Range 2.4GHzWi-Fi–Wireless Transmission Rate 150 MbpsNetwork Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFSInteroperability ONVIF(Profile S&G&T); P2P; CGI; SDKStreaming Method Unicast/MulticastUser/Host 20 (total bandwidth: 64 M)Storage FTP; Micro SD card (512 GB); NASBrowser IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
iOS 10 and later versions. Management Software DSS; DMSSMobile Client iOS; Android Certification Cer tifications CE: CE-LVD: IEC 62368-1/ CE-EMC/EN55032/EN61000-3-3/EN IEC61000-3-2/EN50130-4/EN55035FCC : 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 Port Alarm Linkage Capture; preset; tour; pattern; recordings; alarm digital input; send emailAlarm Event Motion/Tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection Power Power Supply 12 VDC, 1 A ± 10%Power Consumption Basic: 2.7 W
Max. : 4.8 W Environment Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)Operating Humidity ≤ 95%Storage Temperature –30 °C to +60 °C (–22 °F to +140 °F)Storage Humidity ≤ 95%Protection IP66, IK10 Structure Product Dimensions 89 mm × Φ122 mm (3.50" × Φ4.80")Net Weight 0.5 kg (1.10 lb)Gross Weight 0.7 kg (1.54 lb)

Продукт известен още и като SD 22204 DB GNY W, SD22204DBGNYW, SD22204DB GNY W, SD 22204DB-GNY-W, SD22204DB-GNY W
