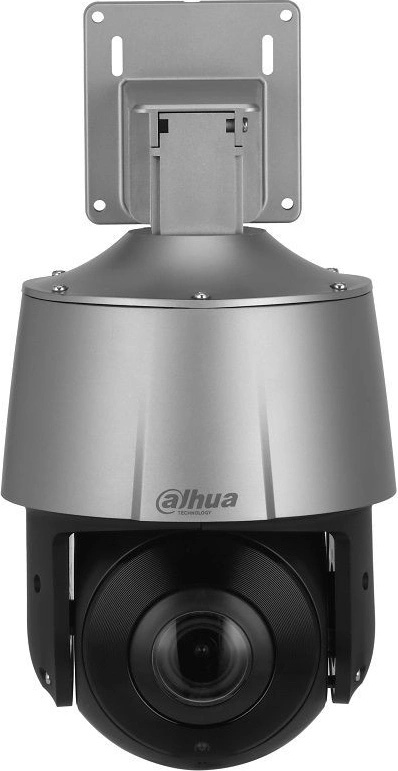

SD3A205-GNP-PV 2MP Starlight IR AI WizSense Network PTZ Camera> 1/2.8" 2Megapixel CMOS> Starlight technology> IR distance up to 30 m> Deep-learning-based perimeter protection> SMD Plus> PoE> IP66   Specifications: Camera Image Sensor 1/2.8" CMOSPixel 2MPMax. Resolution 1920 (H) × 1080 (V)ROM 256 MBRAM 512 MBElectronic Shutter Speed 1/3 s–1/100000 sScanning System ProgressiveMin. Illumination Color: 0.002 [email protected]
B/W: 0.0002 [email protected]
0 lux (illuminator on)Illumination Distance  30 m (98.43 ft)Illuminator On/Off Control Manual/SmartIR/OffIlluminator Number 4 IR lights; 1 white light Lens Focal Length 2.7 mm–13.5 mmMax. Aperture F1.8–F3.3Field of View H: 101.6°–33.5°; V: 52°–18.7°; D: 124.7°–38.5°Optical Zoom 5xFocus Control Auto/Semi-Auto/ManualClose Focus Distance 1.2 m (3.94 ft)Iris Control FixedDORI Distance Detect Observe Recognize Identify131 m (429.79 ft) 52.3 m (171.59 ft) 26 m (85.30 ft) 12.8 m (41.99 ft) PTZ Pan/Tilt Range Pan: 0°–355°
Tilt: -15°–+90°Manual Control Speed Pan: 0.1°/s–80°/s
Tilt: 0.1°/s–56°/sPreset Speed Pan: 81°/s; Tilt: 43°/sPreset 300Power-off Memory  SupportIdle Motion Preset Artificial Intelligence Perimeter Protection Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.   Active Deterrence Light Warning White light warningFlash duration: 5 s–30 sFlash frequency: high, medium, lowSound Warning Sound warning alarm: CustomizableAlarm duration: 10 s, 20 s, 30 s Video Compression H. 265; H. 264B; H. 264M; H. 264H; MJPEG; MJPEG (Sub Stream); H. 265+; H. 264+Streaming Capability 3 streamsResolution 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)Frame Rate Main stream: 1080P (1–25/30 fps); 1.3M (1–25/30 fps); 720P (1–25/30 fps)Sub stream 1: D1/CIF (1–25/30 fps)Sub stream 2: 1080P (1–25/30 fps); 1.3M (1–25/30 fps); 720P (1–25/30 fps)Bit Rate Control Variable/Constant

• Bit Rate H. 264: 3 Kbps–20480 Kbps
  H. 265: 3 Kbps–20480 KbpsDay/Night Auto (ICR)BLC  SupportWDR DWDRHLC SupportWhite Balance Auto/Indoor/Outdoor/Tracking/Manual/Sodi um lamp/Natural light/Street lampGain Control Auto/ManualNoise Reduction 2D/3DMotion Detection SupportRegion of Interest (RoI) SupportDefog ElectronicFlip 180°S/N Ratio ≥ 55 dB Audio Compression G. 711a; G. 711Mu; G. 726; AAC; MPEG2-Layer2; G722.1; G729; G723 Network Ethernet RJ-45 (10/100Base-T)Protocol IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMP v1/v2c/v3 (MIB-2); RTCP; RTMPInteroperability  ONVIF Profile S&G&T; CGIStreaming Method Unicast/MulticastUser/Host  20 (total bandwidth: 64 M)Storage FTP; Micro SD card (256 G); NASBrowser  IE7 and later versions
  Chrome 42 and earlier versions
  Firefox 52 and earlier versions
  SafariManagement Software DMSSMobile Phone iOS, Android Certification Cer tifications CE: EN55032/EN55024/EN50130-4/EN 55035/EN 61000-3-2/EN 61000-3-3/EN 62368-1FCC: Part15 subpartB, ANSI C63.4- 2014Port  Audio Input 1 (Built-in Mic)Audio Output 1 (Built-in Speaker)Two-way Audio SupportAlarm Linkage Capture; preset; SD card record; send email Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; encoder state detection; memory card state detection; memory space detection Power Power Supply 12 VDC/2A ± 10% (supports PoE)Power Consumption Basic: 5W
  Max: 12W (illuminator on)Power Adapter Included Environment Oper ating Temperature  –30°C to +60°C (–22°F to 140°F)Operating Humidity ≤ 95%Protection IP66; TVS 2000V lightning proof; surge protection; voltage transient protection Structure Dime nsions 271.7 mm × 142.5 mm × 124.1 mm (10.70" × 5.61" × 4.89")Net Weight 1.1 kg (2.43 lb)Gross Weight 1.51 kg (3.33 lb)
