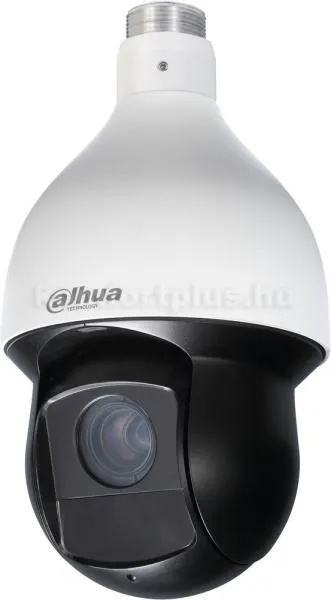

Dahua SD59430U-HNI

4MP 30x IR PTZ Network Camera
> 1/3 4Megapixel CMOS
> Powerful 30x optical zoom
> H. 265 Encoding
> Max. 25/30fps@4M/3M, 25/30/50/60fps@1080P
> Auto-tracking and IVS
> Support PoE+
> IR distance up to 100m
> IP66

Camera:

Image Sensor- 1/3 CMOS

Effective Pixels- 2592(H) x 1520(V), 4 Megapixels

RAM/ROM- 1024M/128M

Scanning System- Progressive

Electronic Shutter Speed- 1/1s~1/300,000s

Minimum Illumination- Color: [email protected]; [email protected](IR on)

S/N Ratio- More than 55dB

IR Distance- Distance up to 100m (328ft)

IR On/Off Control- Auto/Manual

IR LEDs- 4

Lens:

Focal Length- 4.5mm~135mm

Max. Aperture- F1.6 ~ F4.4

Angle of View- H: 60° ~ 2.2°

Optical Zoom- 30x

Focus Control- Auto/Manual

Close Focus Distance- 100mm~ 1000mm

DORI Distance:
Detect- 2700m(8858ft)
Observe- 1080m(3543ft)
Recognize- 540m(1772ft)
Identify- 270m(886ft)

PTZ

Pan/Tilt Range- Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°

Manual Control Speed- Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s

Preset Speed- Pan: 400° /s; Tilt: 300° /s

Presets- 300

PTZ Mode- 5 Pattern, 8 Tour, Auto Pan , Auto Scan

Speed Setup- Human-oriented focal Length/ speed adaptation

Power up Action- Auto restore to previous PTZ and lens status after power failure

Idle Motion- Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol- DH-SD

Intelligence

Auto Tracking- Support

IVS- Tripwire, Intrusion, Abandoned/Missing, Face Detection

Video

Compression- H. 265+/H. 265/H. 264+/H. 264

Streaming Capability- 3 Streams

Resolution- 4M(2592×1520)/3M(2304×1296)/1080P(1920 ×1080)/720P(1280×720)/D1(704×576/704 480)/CIF(352×288/352×240)

Frame Rate:
Main stream: 4M/3M(1~25/30fps), 1080P/1.3M/ 720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 4M/1080P/1.3M/720P/D1/CIF (1~25/30fps)

Bit Rate Control- CBR/VBR

Bit Rate- H. 265/H. 264: 448K ~ 8192Kbps

Day/Night- Auto(ICR) / Color / B/W

Backlight Compensation- BLC / HLC / WDR (120dB)

White Balance- Auto, ATW, Indoor, Outdoor, Manual

Gain Control- Auto / Manual

Noise Reduction- Ultra DNR (2D/3D)

Motion Detetion- Support

Region of Interest- Support

Electronic Image Stabilization (EIS)- Support

Defog- Support

Digital Zoom- 16x

Flip- 180°

Privacy Masking- Up to 24 areas

Audio

Compression- G. 711a/G. 711Mu/AAC/G. 722 / G. 726/G. 729/MPEG2-L2

Network:

Ethernet- RJ-45 (10/100Base-T)

Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

Interoperability- ONVIF, PSIA, CGI

Streaming Method- Unicast / Multicast

Max. User Access- 20 users

Edge Storage
NAS (Network Attached Storage), Local PC for instant recording, Micro SD card 128GB

Web Viewer- IE, Chrome, Firefox, Safari

Management Software- Smart PSS, DSS

Smart Phone- IOS, Android

Certifications:
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2, No. 60950-1

Interface

Video Interface- N/A

Audio Interface- 1/1

RS485- N/A

Alarm I/O- 2/1

Electrical

Power Supply- AC24V/3A(±10%), PoE+(802.3at)

Power Consumption- 13W, 23W (IR on)

Environmental

Operating Conditions- -40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH

Ingress Protection- IP66

Vandal Resistance- N/A

Construction

Casing- Metal

Dimensions- Φ186(mm) x 309(mm)

Net Weight- 3.5kg(7.72lb)

Gross Weight- 6.8kg(14.99lb)

Продукт известен още и като SD 59430 U HNI, SD59430UHNI, SD59430U HNI, SD 59430U-HNI
