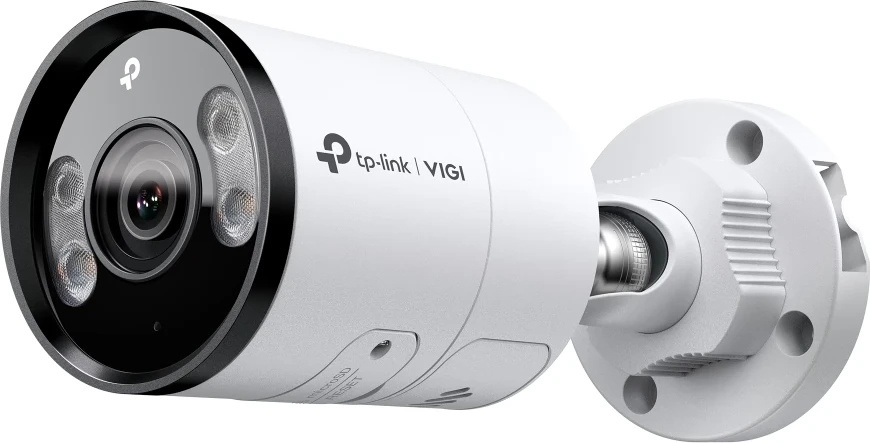

TP-Link VIGI InSight S385

• 4K (8MP) Ultra HD and 24h Full-Color
• People & Vehicle Analytics§
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof
• H. 265+ Compression Technology
• 12V DC/PoE

  Categor y Specification CA MERA  Image Sensor 1/2.7 Progressive Scan CMOSShutter Speed 1/3 to 1/10000 sSlow Shutter YesMinimum Illumination 0.005 Lux; 0 Lux with IR/White lightDay/Night Mechanism IR Cut FilterDay/Night Switch Unified / Scheduled / Auto LENS  Type Fixed Focal LensFocal Length 4 mmAperture F1.6FOV (4 mm) H: 91.5°, V: 46.1°, D: 109.6°Lens Mount M12*P 0.5DORI Distance (4 mm) Detect: 107 m, Observe: 44 m, Recognize: 21 m, Identify: 11 mAngle Adjustment Pan: 0–360°, Tilt: 0–90°, Rotation: 0–360° ILLUMINATOR  IR LED 2 LEDs, 30m range, 850nm wavelengthWhite LED 2 LEDs, 30m rangeIlluminator Control Auto / Scheduled / Always on / Always off VIDEO  Max. Resolution 3840 x 2160Main Stream Frame Rate 50Hz/60Hz: 1–25fps; up to 20fps with rotation or 120dBMain Stream Resolution 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720Sub-Stream Frame Rate 50Hz/60Hz: 1–25fps; up to 20fps with rotation or 120dBSub-Stream Resolution 848x480, 704x576, 640x480, 640x360, 352x288, 320x240Bit Rate Control CBR, VBRVideo Compression H. 265+/H. 265/H. 264+/H. 264 (Main), H. 265/H. 264 (Sub)H. 264 Type High ProfileH. 265 Type Main ProfileVideo Bit Rate Main: 256 Kbps–8 Mbps, Sub: 64 Kbps–512 Kbps IMAGE  Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, IR Overexposure Prevention, HLC (via software)Image Enhancement BLC, 3D DNR, HLC, Smart IRWide Dynamic Range 120 dB (DWDR only when analytics enabled)SNR ≥ 52 dBImage Parameters Switch YesPrivacy Mask Up to 4 MasksROI 1 RegionOSD Setting Yes AUDIO  Audio Communication Two-Way AudioAudio Input YesAudio Output YesAudio Compression YesAudio Sampling Rate 8KHzNoise Filtering YesAudio Bit Rate 64 Kbps (G. 711 alaw) NETWORK  Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARPONVIF Yes (Profile S/T/G)Simultaneous Live View 3 Main Streams & 3 Sub-StreamsClients VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMSSupported Browsers Chrome 57+, Firefox 52+, Safari 11+, Edge 91+Cloud Support YesSecurity Password Protection, HTTPS, IP Filter, Digest Authentication ALARM & EVENTS  Smart Events Intrusion, Line-Crossing, Region Entry/Exit, Object Abandoned/Removed, Loitering, People, Vehicle, Abnormal Sound, Scene ChangeBasic Events Motion Detection (with Human/Vehicle Classification), Tampering, Exception (Illegal Login)Alarm Linkage Memory Recording, Message Push, Audible Warning, White Light FlashingOutput Notification Message Push DEEP LEARNING  People & Vehicle Analytics Attribute-based search & filtering INTERFACES  Network Interface 1 x RJ45 10/100M Ethernet, PoEAlarm N/AReset Button YesPower Interface DC PortOn-Board Storage MicroSD, up to 512 GBBuilt-in Microphone Yes (15-ft range)Built-in Speaker YesAudio Port N/A GENERAL  Operating Temperature -30 to 60 °CStorage Temperature -40 to 60 °COperating Humidity ≤ 95% (Non-Condensing)Storage Humidity ≤ 95% (Non-Condensing)Package Contents Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting AccessoriesMaterial MetalNet Weight 0.525 KgPower Supply 12V DC ± 5% (Max. 10.5 W), PoE (802.3af/at, Max. 11.5 W)Protection Rating IP67Dimensions (L x W x H) 7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm)

Продукт известен още и като INSIGHT S 385 4 MM, INSIGHTS3854MM, INSIGHT S385(4 MM)
