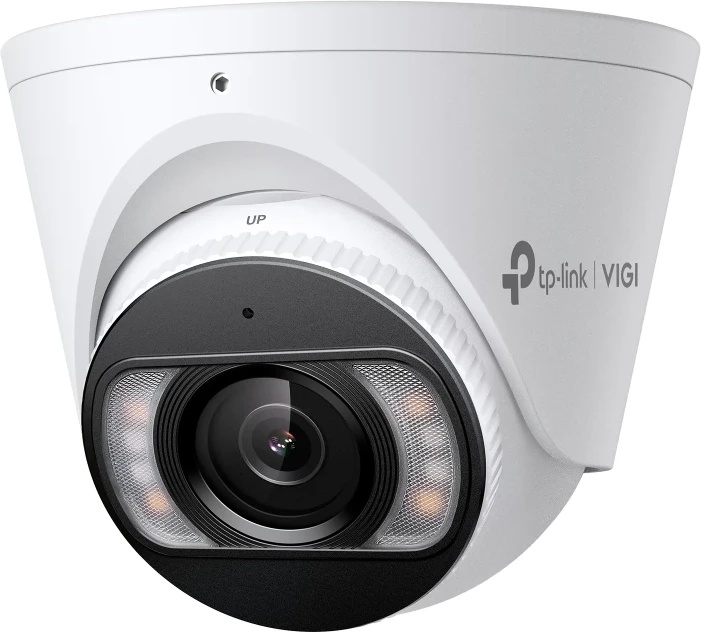

TP-Link VIGI InSight S445

• 4MP Super-High Definition and 24h Full-Color
• People & Vehicle Analytics§
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof
• H. 265+ Compression Technology

  Surveillance Camera Specifications Categ ory Specification Ca mera  Image Sensor 1/2.7 Progressive Scan CMOSShutter Speed 1/3 to 1/10000 sSlow Shutter YesMinimum Illumination 0.005 Lux; 0 Lux with IR/White lightDay/Night Mechanism IR Cut FilterDay/Night Switch Unified / Scheduled / Auto Lens  Type Fixed Focal LensFocal Length 4 mmAperture F1.6FOV 4 mm : Horizontal 80.4°, Vertical 41.8°, Diagonal 98.7°Lens Mount M12*P 0.5DORI Distance 4 mm : Detect 80 m, Observe 33 m, Recognize 16 m, Identify 8 mAngle Adjustment Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360° Illuminator  IR LED 4 LEDs, 30 m Range, 850 nm WavelengthWhite LED 4 LEDs, 30 m RangeIlluminator Control Auto / Scheduled / Always On / Always Off Video  Max Resolution 2688 x 1520Main Stream Frame Rate (50Hz): 1–25 fps Frame Rate (60Hz): 1–30 fps Resolutions: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720Sub-Stream Frame Rate (50Hz/60Hz): 1–30 fps Resolutions: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240Note Frame rate limited to 20fps at 90° or 270° rotationBit Rate Control CBR, VBRVideo Compression Main Stream: H. 265+/H. 265/H. 264+/H. 264Sub-Stream: H. 265/H. 264H. 264 Type High ProfileH. 265 Type Main ProfileVideo Bit Rate Main: 256 Kbps – 6 MbpsSub: 64 Kbps – 512 Kbps Image  Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Overexposure Prevention, HLCImage Enhancement BLC, 3D DNR, HLC, SmartIRWide Dynamic Range 120 dB (DWDR only when People/Vehicle Analytics enabled)SNR ≥ 52 dBImage Parameters Switch YesPrivacy Mask Up to 4ROI 1 RegionOSD Setting Yes Audio  Audio Communication Two-Way AudioAudio Input / Output Yes / YesAudio Compression YesSampling Rate 8 KHzNoise Filtering YesAudio Bit Rate 64 Kbps (G. 711 alaw) Network  Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/IPv6, ARPONVIF Yes (Profile S/T/G)Simultaneous Streams 3 Main + 3 SubClient Support VIGI App, Security Manager, Web UI, VMS, Cloud VMSBrowsers Chrome 57+, Firefox 52+, Safari 11+, Edge 91+Cloud Support YesSecurity Password Protection, HTTPS, IP Filter, Digest Authentication Alarms & Events  Smart Events Intrusion, Line-Crossing, Region Entering/Exiting, Object Abandoned/Removed, Loitering, People/Vehicle Detection, Abnormal Sound, Scene ChangeBasic Events Motion Detection (with Human/Vehicle Classification), Video Tampering, Illegal LoginAlarm Linkage Memory Card Recording, Push Notification, Audible Warning, White Light FlashingLinkage Method N/AOutput Notification Message Push AI Features  People & Vehicle Analytics Attribute-based search for faster post-event investigation Interfaces  Network Port 1 x RJ45 (10/100M, PoE)Reset Button YesPower Interface DC PortOn-board Storage MicroSD up to 512 GBBuilt-in Mic / Speaker Yes / Yes (15-ft voice pickup radius) General  Operating Temp -30°C to 60°CStorage Temp -40°C to 60°COperating / Storage Humidity ≤ 95% (Non-Condensing)Materials MetalNet Weight 0.48 kgDimensions 111 × 111 × 83.7 mm (4.4 × 4.4 × 3.3 in)Power Supply 12V DC ±5%, Max. 11 WPoE (802.3af/at), Max. 12 WProtection IP67

Продукт известен още и като INSIGHT S 445 4 MM, INSIGHTS4454MM, INSIGHT S445(4 MM)
