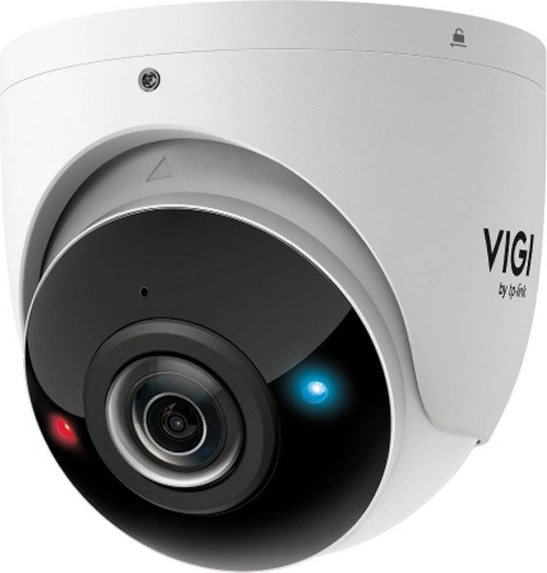

InSight S485PI VIGI 8MP IR Panoramic Turret Network Camera

• 180° Panorama View with Huge Vision
• 4K (8MP) Ultra HD and IR Range Up to 65.62 ft (20 m)*1
• Red-Blue Warning Lights with Stronger Deterrence
• People & Vehicle Analytics*2
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Audio and Alarm Interface Available
• IP67 Weatherproof and IK10 Vandal Proof
• H. 265+ Compression Technology

  Powerful, Efficient Monitoring with Active Defense Active Defense is a monitoring feature that uses deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time, deterring intruders. It also supports user-created custom voice audio.   Category Specification Ca mera  Sensor 1/2.7" Progressive Scan CMOSShutter Speed 1/3 to 1/10000 sSlow Shutter YesMin. Illumination 0.005 Lux; 0 Lux with IRDay/Night Mechanism IR Cut FilterDay/Night Switch Unified / Scheduled / Auto Lens  Type Fixed FocalFocal Length 1.65 mmAperture F2.0FOV H: 180°, V: 86°, D: 180°Lens Mount M12DORI (1.65 mm) Detect: 44 m, Observe: 18.33 m, Recognize: 8.8 m, Identify: 4.4 mAngle Adjustment Pan: 0–360°, Tilt: 0–75°, Rotation: 0–360° Illuminator  IR LEDs 4IR Range 20 mWavelength 850 nmIR Control Auto / Scheduled / Always on / Always off Video  Max. Resolution 3840×2160Main Stream Frame Rate 50Hz: 1–25fps; 60Hz: 1–30fps (max 20fps at 90°/270°)Main Stream Resolutions 3840×2160, 2560×1440, 2304×1296, etc. Sub-Stream Frame Rate Same as main (max 20fps at 90°/270°)Sub-Stream Resolutions 848×480, 704×576, etc. Bitrate Control CBR, VBRCompression (Main) H. 265+/H. 265/H. 264+/H. 264Compression (Sub) H. 265/H. 264H. 264 Profile HighH. 265 Profile MainBit Rate Main: 256 Kbps–8 Mbps; Sub: 64 Kbps–1024 Kbps Image  Settings Mirror, Brightness, Contrast, Saturation, etc. Enhancement BLC, 3D DNR, HLC, SmartIRWDR 120 dBSNR ≥ 52 dBImage Param. Switch YesPrivacy Mask Up to 4ROI 4 RegionsOSD Yes Audio  Communication Two-WayInput Built-in MicrophoneOutput Built-in SpeakerCompression YesSampling Rate 8 KHzNoise Filtering YesBit Rate 64 Kbps (G. 711 alaw) Network  Protocols TCP/IP, UDP, HTTPS, FTP, RTSP, IPv4/6, etc. ONVIF YesAPI ONVIF Profile S/T/GLive View 3 Main + 3 Sub StreamsClient Support VIGI App, Web UI, VMS, Cloud VMSBrowser Support Chrome 57+, Firefox 52+, Safari 11+, Edge 91+Cloud Support YesSecurity Password, HTTPS, IP Filter, Digest Auth Alarm & Events  Smart Events Intrusion, Line-Crossing, Loitering, Vehicle Detection, etc. Basic Events Motion Detection (with human/vehicle classification), Tamper, ExceptionAlarm Linkage Recording, FTP, Alarm Out, Notifications, Light/Sound Alarm, EmailDeep Learning People/Vehicle attribute-based search Interfaces  Network RJ45 (10/100M, PoE)Alarm 1 In, 1 OutWarning Lights Red-BlueReset YesPower 12V DC ±5%, PoE (802.3at Class 4)Storage MicroSD (up to 512 GB)Audio 1 In, 1 Out General  Operating Temp -30 to 60 °CStorage Temp -40 to 60 °COperating Humidity ≤ 95% (Non-condensing)Storage Humidity ≤ 95% (Non-condensing)Included Camera, Guide, Waterproof Attachments, Mount KitMaterial MetalWeight 0.76 kgDimensions (L×W×H) 112.3 × 112.3 × 110.2 mm

Продукт известен още и като VIGI InSight S 485 PI, VIGIInSightS485PI, VIGI InSight S485 PI
