Характеристики:

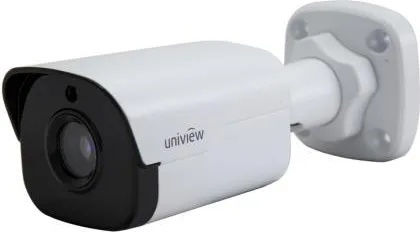

UNIVIEW IPC2121SR3-PF36 е мрежова инфрачервена камера с висока резолюция, която е създадена за денонощно видеонаблюдение. Това Ви позволява ефективно да следите сигурността по всяко време.

Ден/Нощ функционалност
до 30 m (98 ft) IR покритие
IR антиотражателно стъкло, за да се подобри IR излъчването
3D DNR (Цифрово шумопотискане)
H. 264/MJPEG
Троен стрийм

Sensor:

1/3", 1.3 megapixel, progressive scan, CMOS

Lens:

[email protected]

Angle of view(H): 76.7°

[email protected]

Angle of view(H): 46.9°

[email protected]

Angle of view(H): 24.2°

Shutter:

Auto/Manual, 1/6~1/8000 s

Min. Illumination:

Colour: 0.06 Lux (F1.4, 50IRE)

0 Lux with IR on

Day/Night:

IR-cut filter with auto switch (ICR)

IR Range:

Up to 30m (98 ft) IR range

S/N

>50dB

WDR

Digital

Noise Reduction

2D/3D

Video

Max. Resolution

1280×960

Video Compression

H. 264/MJPEG

Frame Rate

960P (1280*960): Max. 25 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 25 fps

Video Streaming

Triple

ROI

Supported

OSD

Up to 8 OSDs

Motion Detection

Up to 2 areas

Privacy Mask

Up to 4 areas

Network

Protocols

L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, SIP, QoS

Compatible Integration

ONVIF

Interface

Network

1 RJ45 10M/100M Base-TX Ethernet

General

Power

12 V DC, or PoE (IEEE802.3 af)

Power consumption: Max 6.4 W

Dimensions (L × W × H)

157.3 × 62.4 ×63 mm (6.2 × 2.5 × 2.5)

Weight

0.45 kg (0.99 lb)

Working Environment

-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)

Ingress Protection

IP66



Продукт известен още и като IPC 2121 SR 3, IPC 2121SR3, IPC2121SR 3
