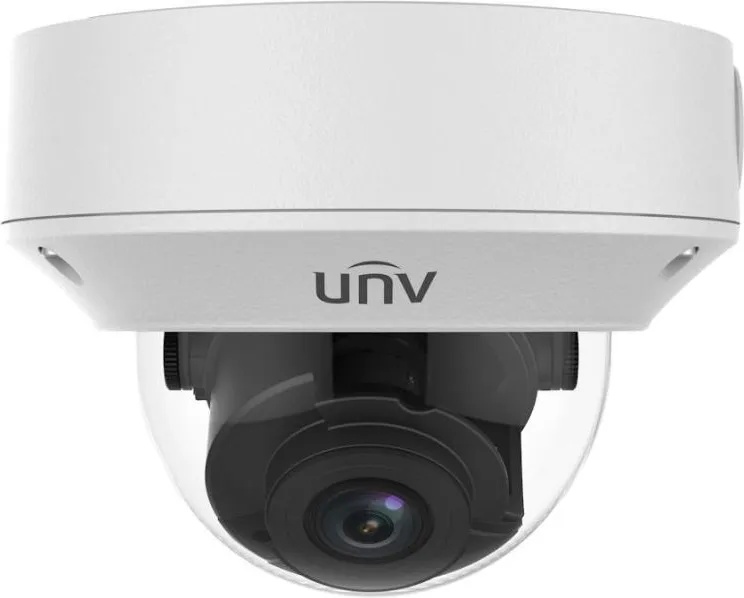

UniVIEW IPC3232LR3-VSPZ28-D

2MP VF Vandal-resistant IR Dome Network Camera

Optics
* Day/night functionality
* Smart IR , up to 30 m (98 ft) IR distance
* IR anti-reflection window to increase the infrared transmittance
* 2D/3D DNR (Digital Noise Reduction)

Compression
* Ultra 265, H. 265, H. 264, MJPEG
* Triple streams

Network
* ONVIF Conformance

Structure
* Wide temperature range: -40°C to 60°C (-40°F to 140°F)
* Wide voltage range of ±25%
* IK10 vandal resistant
* IP67
* 3-Axis

Camera
Sensor 1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens 2.8 ~ 12mm, manual zoom lens 2.8 ~ 12mm, motorized zoom lens
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 42 16.8 8.4 4.2
12 180 72 36 18
Angle of View (H) 116.5° ~ 31.1°
Angle of View (V) 58.8° ~ 17.3°
Angle of View (O) 151.5° ~ 38.2°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.01Lux (F1.6, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
IR Range Up to 30m (98ft) IR range
Defog Digital Defog
WDR DWDR

Video
Video Compression Ultra 265, H. 265, H. 264, MJPEG
H. 264 code profile Baseline profile, Main Profile
Frame Rate Main Stream: 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (704*576), Max 30fps
HLC Supported
BLC Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas

Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API

Interface
Network 10M/100M Base-TX Ethernet
Edge Storage MicroSD, up to 256GB

General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 6.5W
Dimensions (Ø x H) Φ148 x 111.3mm (Ø5.8 x 4.4)
Weight 0.92kg (2.0lb)
Working Environment -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
Vandal Resistant IK10
Reset Button Supported
