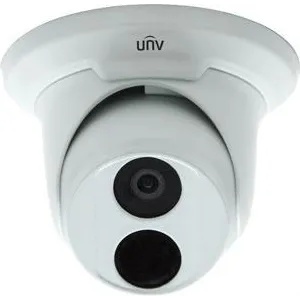

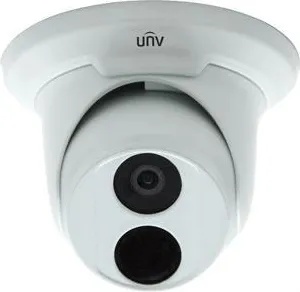

Uniview IPC3614SR3-DPF28M

Optics
*Day/night functionality
*Up to 120 dB WDR (Wide Dynamic Range)
*Smart IR, up to 30 m (98 ft) IR distance
Compression
*H. 265, H. 264, MJPEG
*Embedded smart algorithm
*Triple streams
*9:16 corridor format
Network
*ONVIF Conformance
Structure
*Wide temperature range: -35°C to 60°C (-31°F to 140°F)
*Wide voltage range of ±25%
*4 KV surge protection designed for network interface
*IP67

Camera

Sensor
1/3", 4 megapixel, progressive scan, CMOS

Lens
[email protected]

Angle of view(H)
101.8°

Adjustment Range
Pan: 0°~360° , Tilt: 0° ~ 77°, Rotation: 0° ~ 360°

Shutter
Auto/Manual, 1/6~1/100000 s

Min. Illumination

Colour: 0.02 Lux (F1.8, AGC ON)
0 Lux with IR

IR
30m (98ft) IR range

Day/Night
IR-cut filter with auto switch (ICR)

WDR
120 dB

AWB(Auto white balance)
Auto/manual

Gain Control
Auto/manual

Noise Reduction
2D/3D

Video

Max. Resolution
2592×1520

Video Compression
H. 265, H. 264, MJPEG

Frame Rate
4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps
3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps

Video Streaming
Triple

9:16 Corridor Mode
Supported

Evaluative Metering
Supported

OSD
Up to 8 OSDs

Motion Detection
Up to 2 areas

Privacy Mask
Up to 8 areas

Smart
Behavior Detection
Intrusion, crossing line, motion detection
Intelligent Identification
Face detection, Defocus, Scene Change
Statistical Analysis
People counting

Network

Protocols
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x

Compatible Integration
ONVIF, API

Interface

Network
10M/100M Base-TX Ethernet

General

Power
12 V DC, or PoE (IEEE802.3 af)
Power consumption: Max 5.5W

Dimensions (Ø x H)
Φ126 x 94 mm (Ø5.0 x 3.7)

Weight
0.45 kg (0.99lb)

Operating Conditions
-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)

Ingress Protection
IP67

Продукт известен още и като IPC 3614 SR 3 DPF, IPC3614SR3DPF, IPC3614SR3 DPF, IPC 3614SR3-DPF
